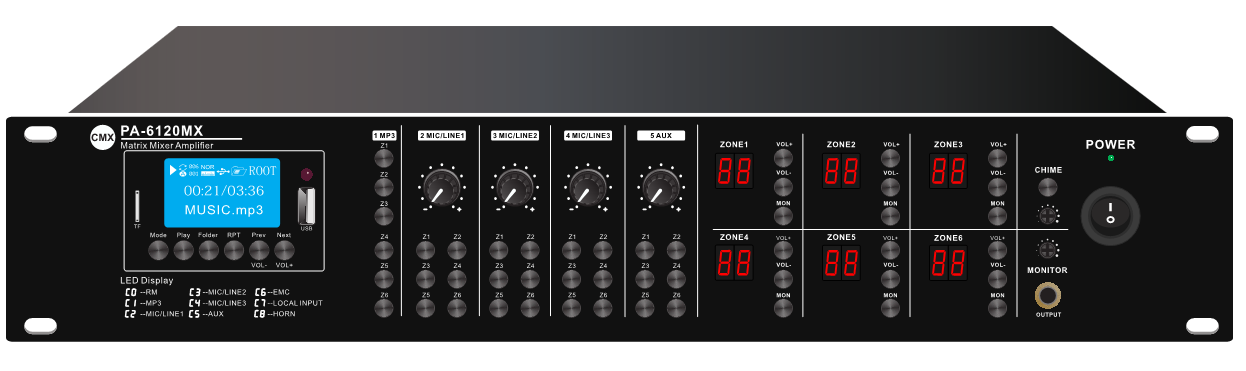

CMX 6x120W 6 Zone Mixer Amplifier With USB/SD/FM/Bluetoot-PA-6120MX

الوصف

Multi-room commercial audio systems requiring different audio sources & multiple paging microphones
6 zone mixer amplifier built-in USB/SD/FM/Bluetooth audio player
6 zone mixer amplifier built-in 6 channel power amplifier & 6 channel audio matrix
Support both 100V or 8-16 Ohms speaker applications
6 independent output zones with attenuation
3 mic/line inputs, 1 aux input & an integral audio player matrix switched to any of the 6 zones independently
3 mic/line switchable input with +48V phantom power balanced COMBO XLR
Each input with bass/treble includes 3 mic/line & 1 auxiliary input
Mic1 with VOX highest priority and chime functions
24V mute contact to active the built-in pre-recorded Alert/EVAC message
Monitor headphones output with attenuation
Up to 6 remote microphones PA-6000RM connection to the amplifier through CAT6 cable
Up to 6 remote control panels PA-6000SV connection to the amplifier through CAT6 cable
Remote control panel PA-6000SV select source, adjust volume and input Bluetooth
With complete protection includes short-circuit, clip, overload and high temp

PA-6000SV Remote Control Panel

Communication through CAT6 cable up to 200 ms
Direct power supply from matrix controller
Audio sources selection and volume control
6 units capacity for each matrix controller

PA-6000RM 6 Zone Remote Microphone

Communication through CAT6 cable up to 200 ms
Direct power supply from matrix controller
6 speaker zone individual, group or all zone paging
Up to 6 Mics working simultaneously loop connection
