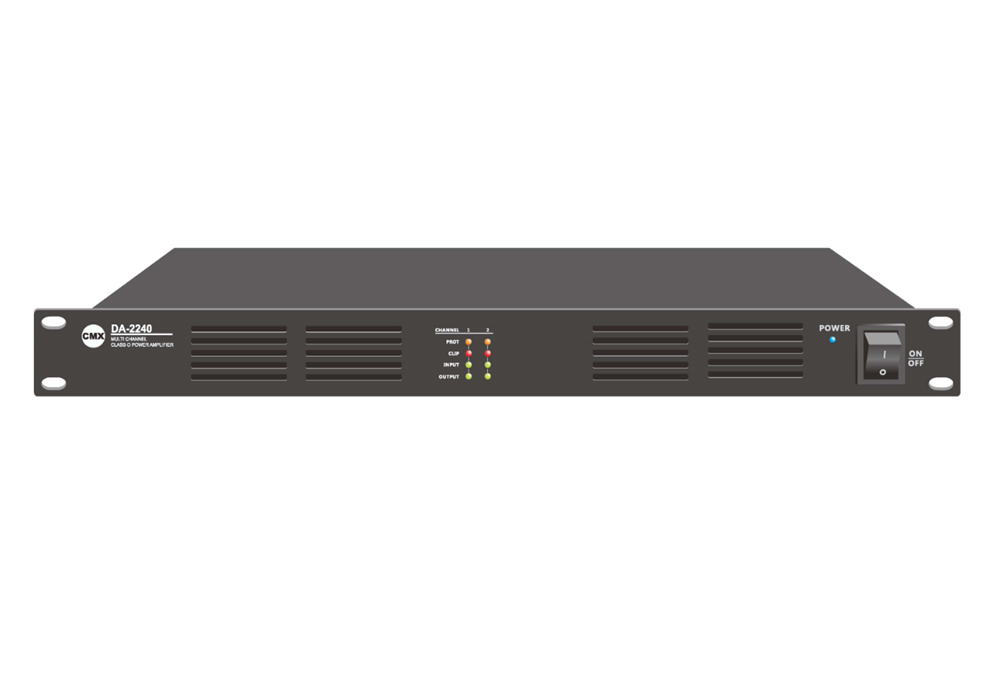

CMX 2x500W Class-D Power Amplifier (Volt/Ohm)

Description

The DA-2500 series digital class-D two channel power amplifier is of switching power technology, which features of minimum power consumption and much higher efficiency up to 85%. The DA-2500 series power amplifier is of rated power output at 2x120W, 2x240W, 2x350W & 2x500W, so it could be used as two zone multiple sources public address system or stereo professional audio system The versatile loudspeaker outputs of both high impedance 100V & low impedance 8 Ohm. There are two balanced inputs by phoenix connector for each channel with gain control. The built-in two channel separate high-pass filters could be enabled or disabled through the dip switch pre-setting. Automatic standby enable after no detection of signal input for one minute, immediately wake up at sight of any input. Visual working status indicators include protection, clip, input and output for easy supervision. With complete short circuit, overload, high temp, clip and DC protection. Power supply of 230V AC and 24V DC.

Feature:

Switching power technology digital power amplifier
Class-D power amplifier of mini power consumption
19” rack mount of 1U height
Power output 2x120W, 2x240W, 2x350W & 2x500W
Two channel speaker outputs 8 Ohm & 100V
Two balanced line inputs by phoenix connector
Each input with separate gain control.
Each two channel with high-cut filter.
Built-in auto standby to save power consumption
Separate two channel indicators for protection, clip, input and output
Short circuit, overload, high temp & clip protection
Power supply of 230V AC and 24V DC
