Proel Stereo Passive Direct Injection Box
19.950 KWDPC
Input: 2 x 1/4″ JACK (UNBALANCED) / 1x Stereo Mini Jack
Output: 2 x XLR (BALANCED)
Input Impedance: >250 Kohm (no PAD) / 10 Kohm (with PAD)
Max Input Level: +20 dBu (no PAD) / +40 dBu (with PAD)
Pad -20 dB, GND LIFT
Frequency Response: 10 Hz to 100 kHz (-3 dB)
Distortion THD+N 0dBu < 0.007 %
4 in stock
Description
DI Boxes perform several important functions: they are designed for impedance matching and balancing the signal of a guitar, a keyboard or any line-level output source, and for injecting directly the signal with very long connections to the XLR microphone inputs of a mixing console.

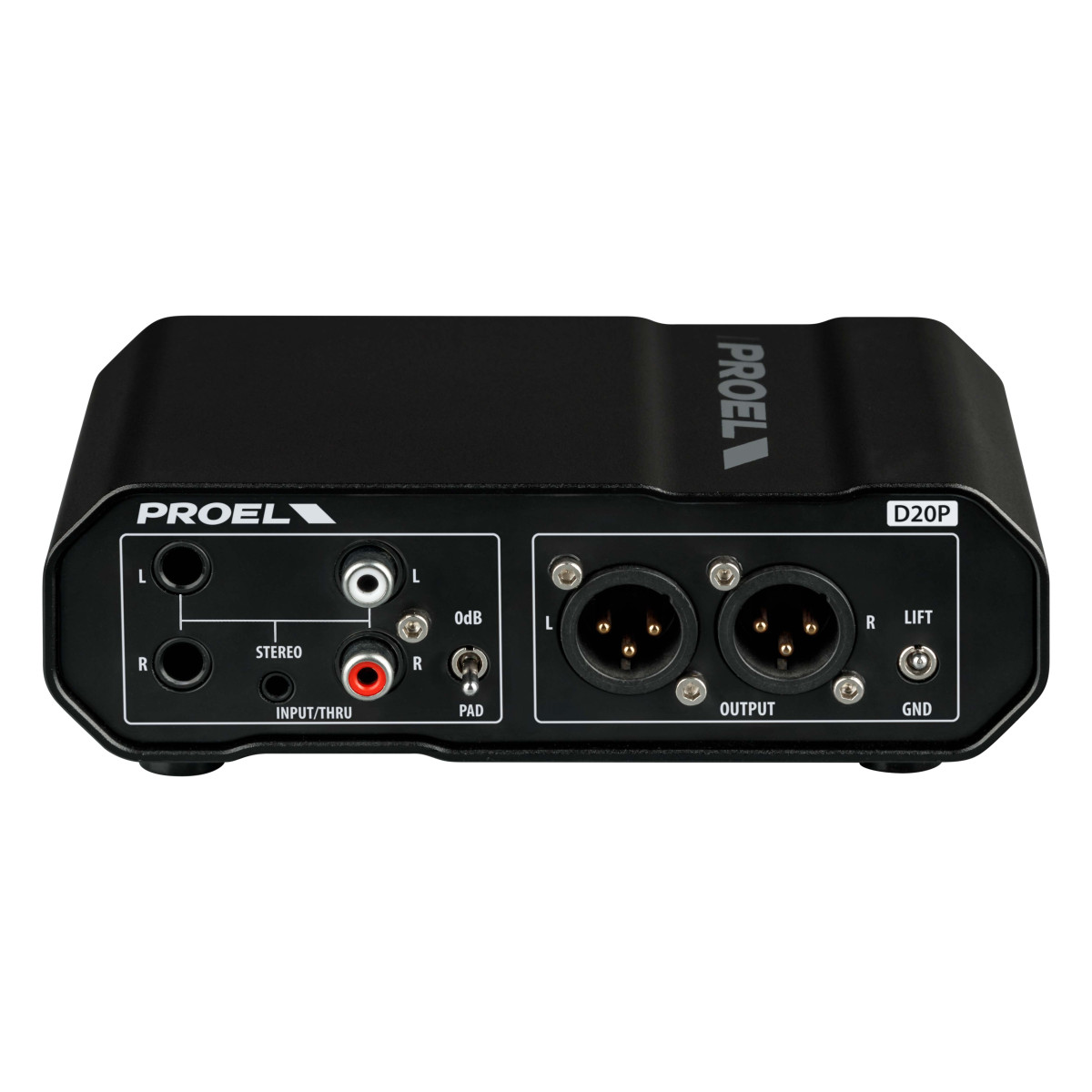

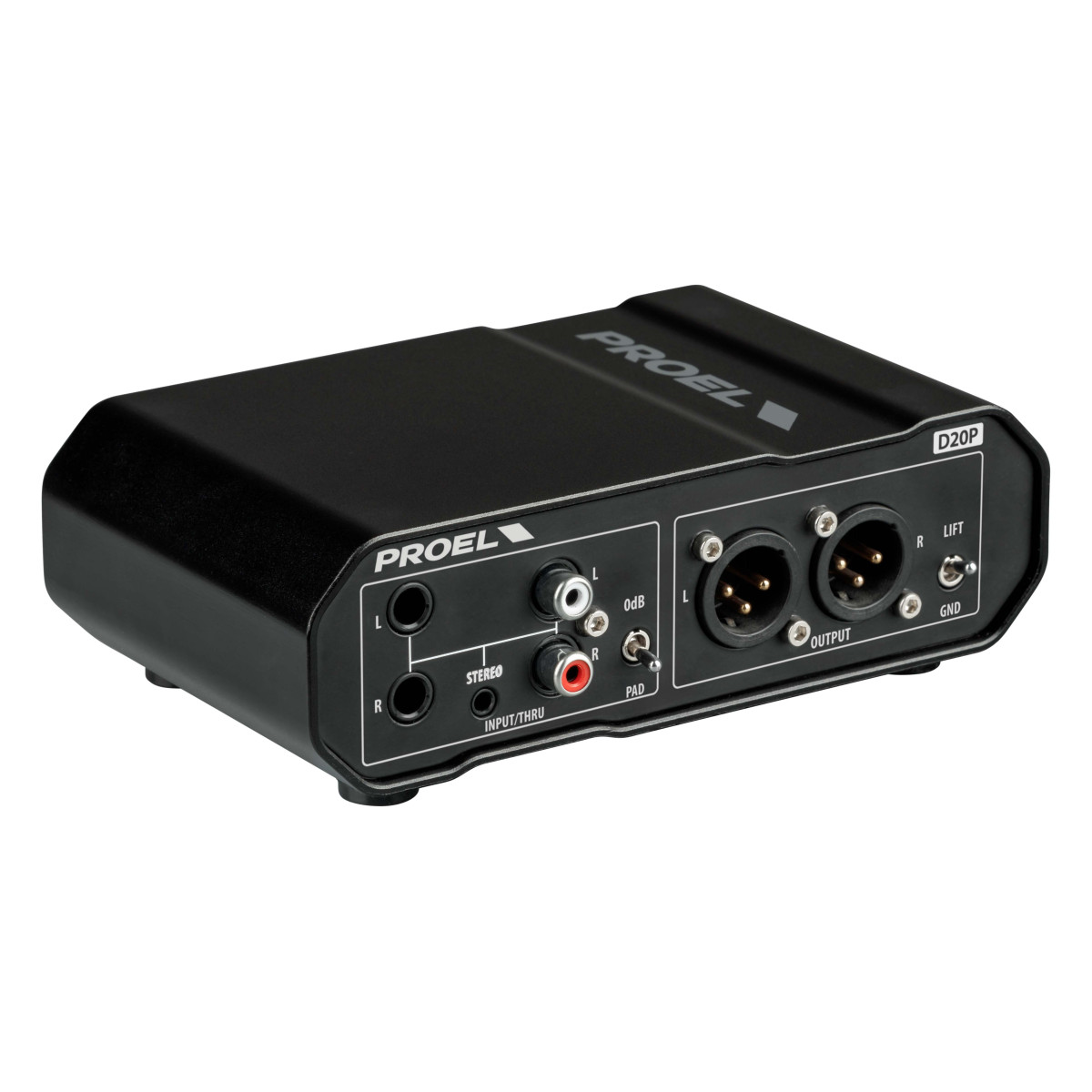

D20P is a STEREO passive direct box with transformers and does not require any external power such as phantom power or batteries to work. The advantage of a transformer is the possibility to avoid any electrical connection between the sound source and the mixer. This provides two huge benefits: with no electrical path, ground loops are eliminated and the cancellation of common-mode noise, like hum, is possible. D20P features two 1/4″ jack to connect a stereo keyboard, or two RCA to connect a DJ console, or a 3,5mm mini-jack to connect a personal computer, for maximum flexibility without the need of special adapters.
