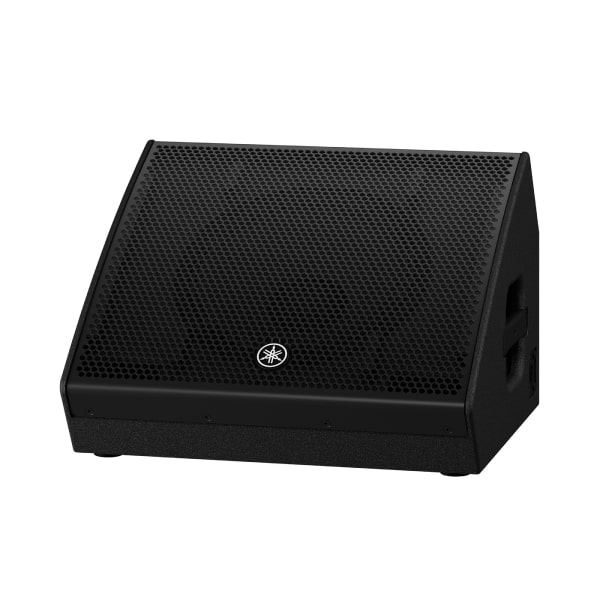

Yamaha 12″ 2-Way Passive Loudspeaker – CHR12
190.000 KWD
Speaker Type: 2-way speaker, bass reflex
Frequency Range: 54 Hz – 20 kHz
Coverage Angle: H90° x V60°
Crossover: 2.0 kHz
Nominal Impedance: 8 Ω
Sensitivity (1W; 1m): 94 dB SPL
Peak SPL (calculated): 124 dB
Components: LF: 12″ cone, HF: 1.4″ compression driver
Power Handling: Noise: 250 W, PGM: 500 W, Peak: 1,000 W
I/O Connectors: SpeakON NL4MP x 2 (parallel)
Cabinet Material: Plywood
Coating: Durable polyurea finish, black
Handles: Top x1, Side x2
Pole Mount: Φ35 mm x2 (bottom, 0° or -7°)
Rigging: Top x2, rear x1 (M10 x 30~50 mm eye bolts)
Weight: 17.1 kg
Dimensions (W x D x H): 359 x 578 x 340 x 578 mm
5 in stock
Description
The CHR Series features a comprehensive lineup of loudspeakers with cabinets optimized to meet the demands of specific applications.
The CHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class. CHR12 are equipped with rotating horns and a dedicated U-bracket for use in fixed installations and utility.
