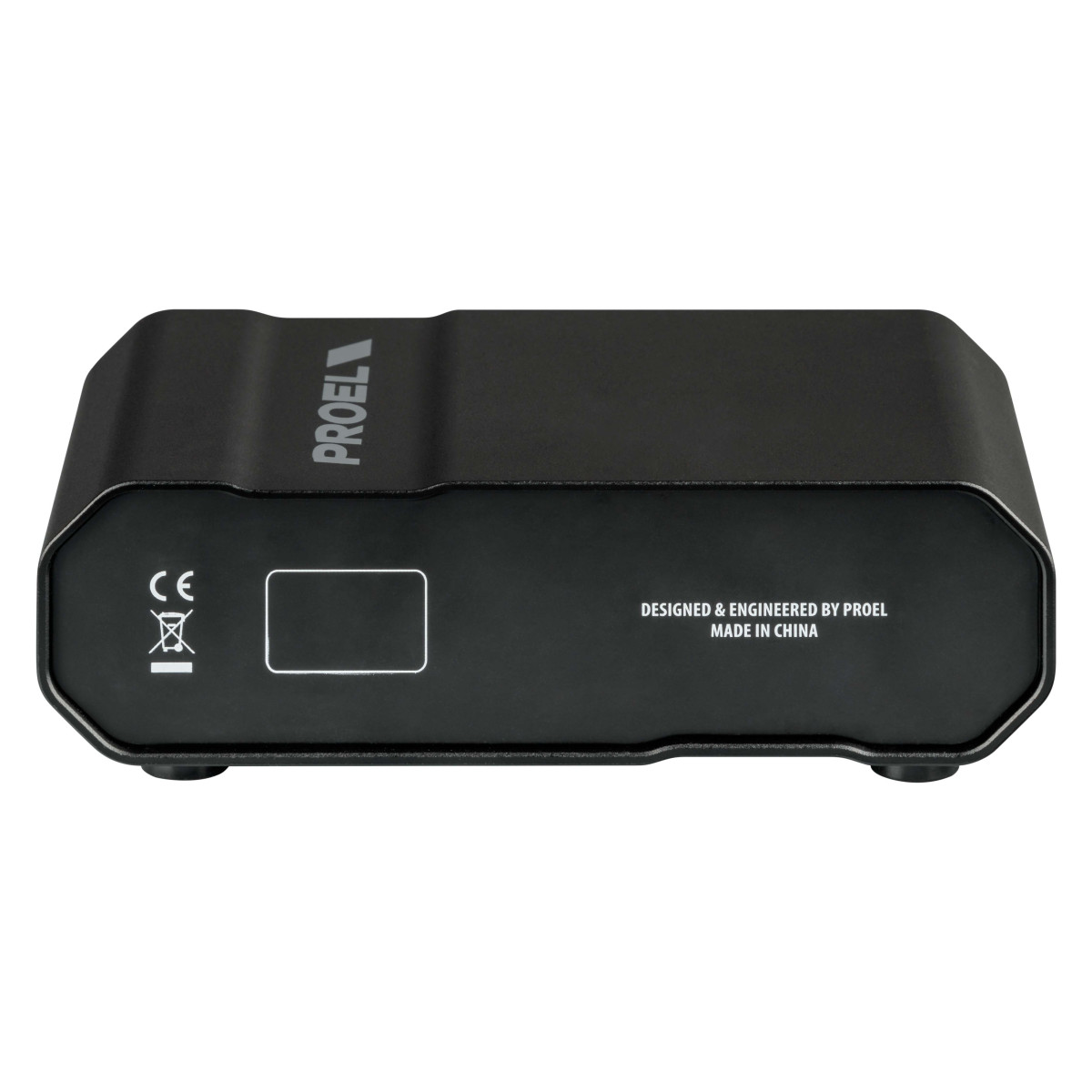

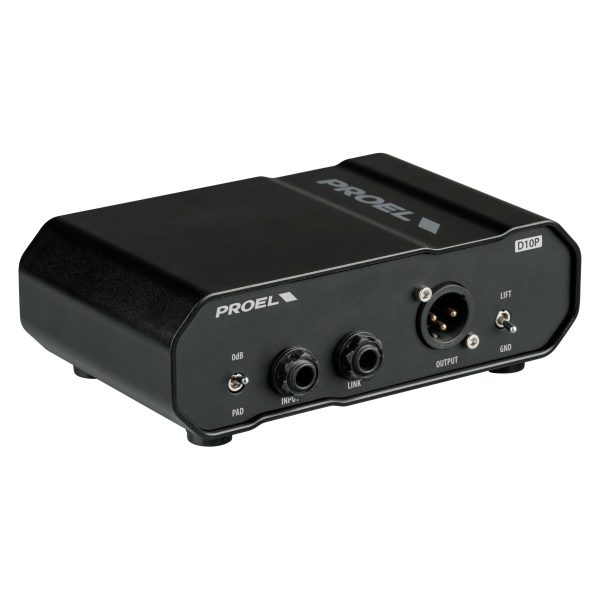

Proel Passive Direct Injection Box
18.000 KWDPC
Input: 1 x 1/4″ JACK (UNBALANCED)
Link: 1 x 1/4″ JACK (UNBALANCED)
Output: XLR (BALANCED)
Input Impedance: >250 Kohm (no PAD) / 10 Kohm (with PAD)
Max Input Level: +20 dBu (no PAD) / +40 dBu (with PAD)
Pad -20 dB, GND LIFT
Frequency Response: 10 Hz to 100 kHz (-3 dB)
Distortion THD+N 0dBu < 0.007 %
4 in stock
Description
DI Boxes perform several important functions: they are designed for impedance matching and balancing the signal of a guitar, a keyboard or any line-level output source, and for injecting directly the signal with very long connections to the XLR microphone inputs of a mixing console.
D10P is a passive direct box with transformer and does not require any external power such as phantom power or batteries to work. The advantage of a transformer is the possibility to avoid any electrical connection between the sound source and the mixer. This provides two huge benefits: with no electrical path, ground loops are eliminated and the cancellation of common-mode noise, like hum, is possible.
